Perforated Diffusers - Ceiling Air Diffuser, Air Vacuum Diffusing Grille, Light Diffuser

Air flow is an important factor needed to be considered in architectural designs where perforated metal come as an ideal mesh material. The perforated panels used for building air flow control are called perforated diffusers or air diffusers. It is used as ceilings or roofing panels.

Reasons to Choose Perforated Metals as Roofing Diffusers:

The perforated panels has slotted holes to make it light in total weight and enable the air flow and light flow. At the same time, the holes and openings can be square, round, hexagonal and decorative to meet the whole setting style of the architectures.

Stainless steel perforated metal and aluminum one are self cleanable and need no maintenance.

Popular Specifications:

Common hole sizes are 1/32", 1/16", 3/32", 1/8", 3/16", 1/4", 3/8" and 1/2", 3/4" and 1". Other hole sizes can be manufactured. Also available are decorative patterns.

Standard available panel thicknesses are 20ga, 16ga, 11ga, and 3/16", 1/4", and 3/8". Alternate thicknesses can be manufactured.

Materials:

Common materials are stainless steel (304 and 316), we also supply mild steel and aluminum perforated sheets.

The metal diffusers are in either mild steel, stainless and aluminium with various dimensions depending on both the application and architectural needs.

Specify the following when order:
Materials;
Hole pattern;
Open area;
Strength;
Hole size and thickness.

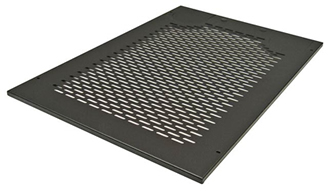

Ceiling Diffusers

Material: Aluminium, steel, stainless steel

900mm x 1100mm Aluminium Perforated diffuser with screw fixing holes.

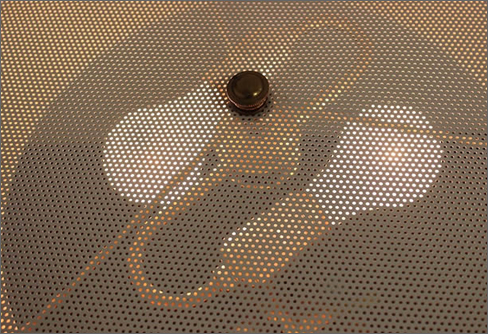

Perforated Metal Light Diffusers

Perforated metal light diffuser with a rolled edge around the entire perimeter for ceiling lamps
Material: Painted perforated metal sheet
Application: Metal sheet for light shade diffusers in architectural design and decoration

10" diameter perforated metal light diffusers (painted white)

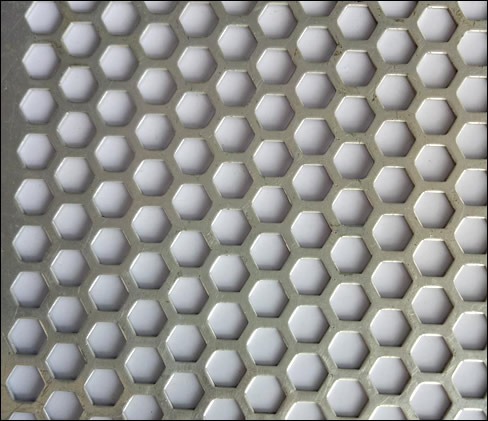

Cooling Air Flow Diffusing Grills

Perforated Supply Air Ventilation Diffusers, mechanical diffuser made of hexagonal hole mesh.
Patterns:

The diffusers panel: 375mm L x 99mm H with frame

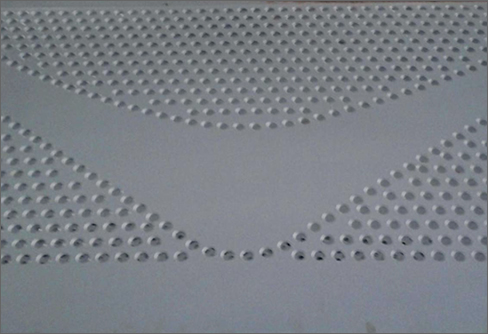

Perforated Metal Diffusers

Perforated Metal Roof Diffusers
Hole: 3/32” diameter holes on ¼” staggered centers.
Pattern: Round hole staggered pattern
Sheet metal perforation: 13%-15% open area.
Reference drawing

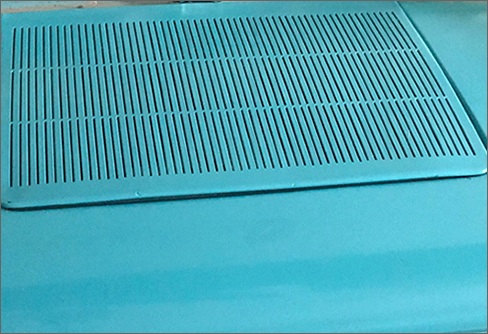

Metal Slotted Diffuser Grid

Slotted sheet metal panels for air flow

Diffusing Sheets for heating, ventilation and air conditioning

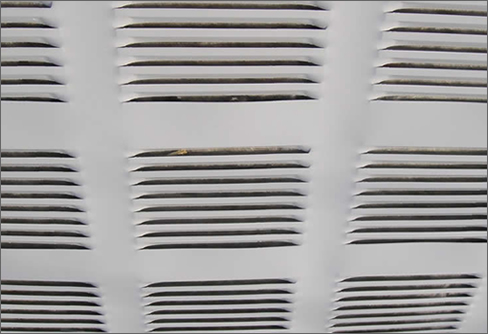

Draft grilles diffusers, 40% free area, for draft and ductwork

Air Grilles for Australia

Perforated Metal Sheets for Diffusers

Common specifications of square shape perforated sheets for diffusers making:

Perforated sheet Material	Round Hole Diameter (mm)	Number of Holes	Free Area	Sheet Metal Diffuser W*H (mm)
2mm Aluminum, Steel	9	34080	60%	1780*2030
	8.5	35023	55%	1780*2030
	8	35944	50%	1780*2030
	7.5	36806	45%	1780*2030
	7	39435	42%	1780*2030

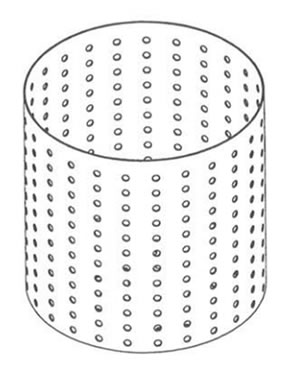

Air Vacuum Diffusers

Material: Perforated 316 stainless steel
Grade: 24 gauge, 1/16 inch holes, 40% opean area

Material: Perforated bronze, 24 24 gauge, 1/16 inch holes, 40% opean area, for air vacuum diffusers

Air vacuum diffusers: 1", 1/2", 2", 3"

Patterns
