Bridge Slotted Screen Pipes - Water Well Screen and Casing Tubes

Bridge Slotted Screen Pipes are perforated tube filters with precision-punched staggered bridge-slot openings. Bridge Slotted Filter Pipes have arched bridge-like perforations preventing media clogging while maximizing fluid intake.
Manufactured from carbon steel or stainless steel, bridge slot screens are widely used in well drilling and filtration due to high mechanical strength, optimal sand and gravel retention, lightweight construction and cost-effectiveness.

Bridge-slot screens are exceptionally suited for water well applications due to following advantages:
1, High Structural and Mechanical Stability:
Compared with standard perforated pipes, staggered bridge-slot pipe preserves the integrity of the pipe wall, provides superior resistance to compressive and torsional forces from surrounding earth and gravel packs.
2, Anti-Clogging: The arched "bridge" structure acts as a physical barrier to prevent sand, gravel, and sediment particles from wedging tightly into the slot openings. This self-cleaning feature maintains discharge capacity and reduces the risk of well failure due to sand pumping.
3, Maximum Hydraulic Efficiency: High percentage of open area ensures smooth water entry from the aquifer into the well with minimal pressure drop, optimizing overall well yield and pump efficiency.
4, Smooth Inner Bore: The interior surface of bridge slotted pipes remain completely smooth and unobstructed by protruding elements, allowing for the seamless installation and passage of pumps.
5, Durability and Corrosion Resistance: Manufactured from heavy-duty carbon steel or various grades of stainless steel, bridge slotted screen pipes can resist severe downhole corrosion and abrasive wear.
6, Application of anti-corrosive coating to the pipes will prolong the span lift of wells.
7, Cost-Effectiveness: Bridge slotted screen pipes are lighter in weight and more economical compared with specialized wedgewire well screens.
8, Customization: Customizable pipe diameters, wall thicknesses, and slot sizes can be manufactured to match site-specific water well requirements.

Structure:
Bridge slot metal sheet rolled into tubular screen as filter tube or casing pipe (jacket tube for center tube).

Slot Sizes

Between 0.5 mm / 0.002 in. and 5mm / 0.2 in., depending on the wall thickness

Materials of Construction

Carbon steel, galvanized steel, anti-corrosion coated steel and stainless steel types 304, 304L, 316, 316L & 430.

Sizes: Pipe diameters from 4 in to 80 in
Pipe wall thickness from 3 mm / 0.12 in. to 10mm / 0.4 in.

Applications
Water well screen casings;
Sand control in oil and gas wells;
Dewatering, civil engineering drainage systems;
Other filter uses.


Bridge Slotted Well Screen

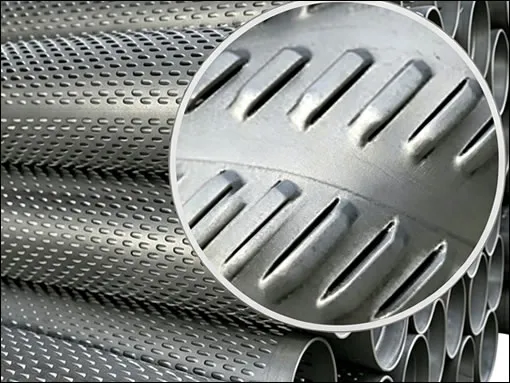

6 5/8" OD Stainless Steel bridge slotted screen grade 304 AISI
Pipes Bridge slot 6 5/8" ERW
Lateral slot opening 1- 1.5 mm
Open area: Min. 12%
Collapse pressure min. 450 PSI
Wall thickness: Min. 4 mm
Length 5.8 meter API STC Connection
Bridge slot screen pipes for drilling uses
Material options: Carbon steel, ST.ST. 304L
Joint to be one piece without circular welding
Processing: Inside and outside longitudinal welded

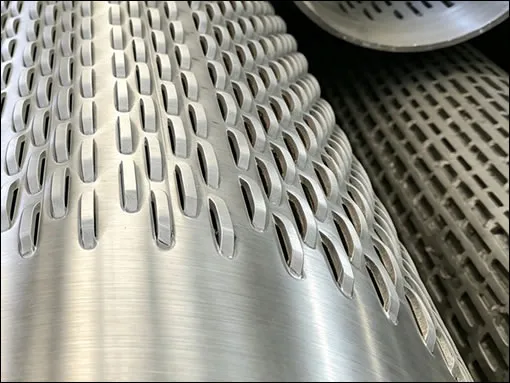

Bridge Slotted Screen and Casing in Stainless Steel

Bridge slotted screen in stainless steel: Diameter ca. 250, slots ca. 0,8mm, wall thickness ca. 3mm
Bridge slotted screen in stainless steel: Diameter ca. 350, slots ca. 0,8mm: wall thickness ca. 4mm
Casing Stainless Steel tubes Diameter ca. 250 mm, wall thickness ca. 3mm
Casing Stainless Steel tubes Diameter ca. 350 mm, wall thickness ca. 4mm

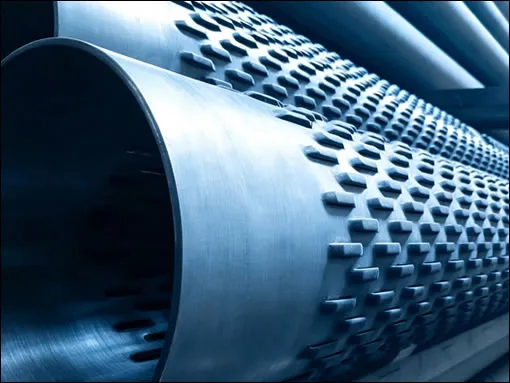

Bridge Slotted Well Screens for Water Well Filtration

Bridge slot screens for water wells uses in European market (Spain and Portugal)
Specification:
Perforation: Staggered bridge slot
Type: Bridge slotted 200-4
Tube wall thickness options: 4 mm, 5 mm, 6 mm.
Surface: Special coating

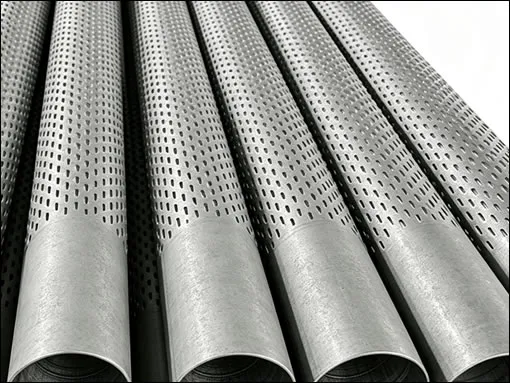

Carbon Steel Bridge Slotted Tubes

Steel grade: Carbón steel hot rolled Q235jR.
Structure and processing: Welded mig/mag longitudinal and circunferential
Plates Bended length 1.5 meters
Tubes specification:
Tube external diameter: OD 188 mm, 208 mm, 228 mm, 258 mm, 260 mm
Wall thickness: 4 mm, 5 mm
Tube length: 4.5 m
Specification List:

Welded Steel Bridge Slotted Screen Pipes, Manufactured according to ASTM A53 Grade B specifications

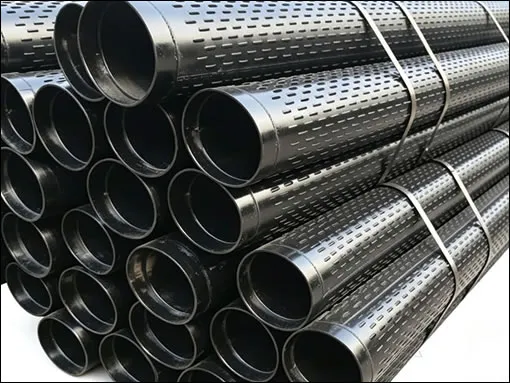

ASTM A53 Grade B 14-Inch Welded Steel Bridge Slotted Screen Pipe

14" Bridge slot pipe, 0.312" Wall SCH 20 Water Well Casing

Slot Detail:

Specifications:
Material Standard: ASTM A53 Grade B
NPS 14"
Outside Diameter (OD): 14 inches
Wall Thickness: 0.312 inches
Weight: 45.65 LB/FT (67.9 KG/M)
Lengths Options: 6.1 m, 5.8 m
Surface Finish: Black paint
Pipe Ends: Bevelled
Slot Details: Slot Height: 2.5 mm
Infiltration Area: 40.63 sq.in/ft (85,978 mm2/Meter, approximately 21%)

ASTM A53 Grade B 16-Inch Welded Steel Bridge Slotted Screen Pipe | 0.312" Wall SCH 20 Water Well Casing
Material Standard: ASTM A53 Grade B
NPS 16"
Outside Diameter (OD): 16 inches
Wall Thickness: 0.312 inches
Weight: 52.32 LB/FT (77.83 KG/M)
Lengths Options: 6.1 m, 5.8 m
Surface Finish: Black paint
Pipe Ends: Bevelled
Slot Details:
Slot Height: 2.5 mm
Infiltration Area: 40.63 sq.in/ft (85,978 mm2/Meter, approximately 21%)
