Perforated Stainless Steel Sieves SS 304 and SS 316 for Sand Grading, Grain Sorting, Chemical Powder Screening and Testing

Perforated plate sieves are manufactured by punching metal sheets, then cutting, forming and framing into standardized sieve assemblies. Perforated plate sieves are made mainly from round hole perforated metal sheets, also rectangular and square hole perforated sheets..

Materials: Stainless Steel 304, ss 305, ss 316, also mild steel

Uses: Perforated metal sieves are widely used in laboratories, construction materials testing, aggregate and sand analysis.

Perforated Plate Sieves Hole Shapes We Supply:
Hole shapes: Round hole standard. Other hole sizes such as Square and rectangular also available upon request.

Round hole perforated plate sieves (ISO, ASTM, and BS standards): most popular, standard test sieves.
We also square hole and slotted perforated sieves:
Square hole perforated sieves: For accurate sizing of angular particles or granules;
Slotted (rectangular) hole perforated sieves: For elongated particles such as fibers, chips, or pellets or drainage applications.

Why Perforated Plate Sieves Instead of Woven Wire Mesh Sieves?
Test sieves made of perforated sheets/plates enable improved productivity in many fields of operations: pharmaceutical, chemical, metallurgic, environmental and for special programs of chipping, control sifting (industrial sieves) and solid filtering.

Why Round Hole Perforated Plate Sieves?
Round hole perforated metal sieves are the most commonly used screening materials with uniform circular openings, uniform particle passage, accurate sizing and easy cleaning.

Four technical factors for choosing the right round hole perforated plate sieves:
First, choose the right metal material: Carbon steel sieves or different grades of stainless steel. It depends on the work conditions and corrosion resistance property demand.
Secondly, Hole diameters: We supply perforated sheets with small, medium and large holes to meet various sizing requests.
Thirdly, Hole patterns: Stright line or staggered pattern ( 60 degree, 90 degree). The most popular hole arrangement is the 60 degree angle pattern, which combines a high rigidity and a decent proportion between open and full areas . The 90° pattern is equally popular, above all for aesthetic needs whereas the 45° pattern is now almost disused.
Fourthly, the pitch distance or interaxis. This means the minimum distance between the centers of two adjacent holes. Whether you need standard pitch or custom pitch.

Details of Round Hole Perforated Plate Sieves:
Material: Stainless steel 304/316.
Hole Diameter: 0.5 mm – 100 mm (0.02 in – 4 in)
Plate Thickness: 0.5 mm – 8 mm (0.02 in – 0.31 in)
Open Area: 20 % – 60 %
Standard Sizes: 200 mm, 300 mm, 450 mm, custom diameters available
Pattern: Straight or staggered hole alignment (60° or 90° layout)
Applications:
Round hole perforated screening sieves are mainly used in
Aggregate and sand grading;
Grain and seed classification
Chemical powder and pellet separation
Laboratory testing and quality control
Industrial filtration and screening machinery

Features of Perforated Stainless Steel Sieves:
Acid and alkali resistance,
High temperature resistance
Non-magnetic
Uniform aperture size
Long time use

Perforated Stainless Steel Sieves Round Hole

Stainless Steel Soil Sieve with Perforated Screen
Hole size: 1.5mm
Hole size: 2.5mm
Hole size: 3.5mm
Length and width: 0.5m x 0.5m

Perforated Stainless Steel Test Sieves for Dry Sample Screening

Test Sieves - for dry sample screening
2mm - Perforated plate sieve
Frame:Ø400mm
Material: SS 304

Test Sieves - for dry sample screening
10mm - Perforated plate sieve
Frame:Ø400mm
Material: SS 304

Test Sieves - for dry sample screening
15mm - Perforated plate sieve
Frame:Ø400mm
Material: SS 304

Test Sieves - for dry sample screening
25mm - Perforated plate sieve
Frame:Ø400mm
Material: SS 304

Test Sieves - for dry sample screening
75mm - Perforated plate sieve
Frame:Ø400mm
Material: SS 304

Test Sieves - for dry sample screening
120mm - Perforated plate sieve
Frame:Ø400mm
Material: SS 304

Perforated Stainless Steel Sieves - Round Hole -Stainless Steel 304 Grade

Perforated Metal Sheet for Sieves

Perforated Steel Sheet Staggered Line

Perforated 316 Stainless Steel Sieves
Perforated 316 Stainless Steel Test Seives are mainly used in laboratories, construction materials testing, food processing, and chemical industries.

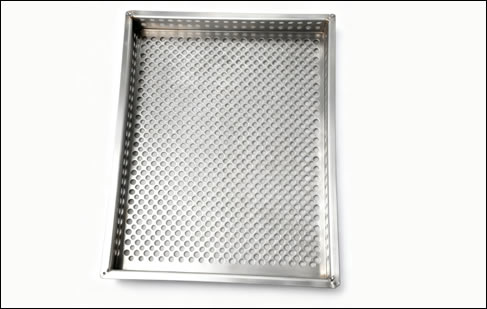

Rectangular Frame Sieves

Circular SS 316 Sieves

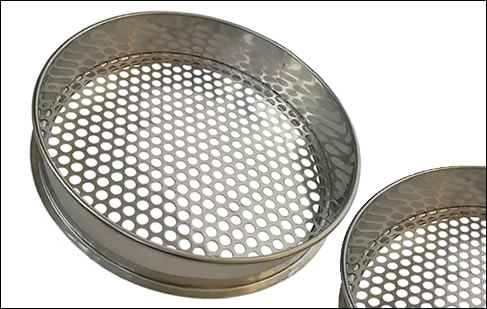

SAE 316 Sieves
300mm diameter x 50mm height
15mm perforated 316 stainless steel sieve with certificate of conformity
Manufactured in accordance with ISO 3310-2 or ASTM E323 standards for perforated plate test sieves

SAE 316 Perforated Sieves
300mm diameter x 50mm height
5mm perforated 316 stainless steel sieve with certificate of conformity
Manufactured in accordance with ISO 3310-2 or ASTM E323 standards for perforated plate test sieves

Round Hole Perforated Plate Sieves 60 Degree Angle

- Dimensions : standard shape
- Metal material : stainless steel
- hole shape and dimension : Round hole. 2.8mm, 2.9mm, 3.0mm, 3.1mm, 3.2mm.
- sieve edges : 60 degree angle pattern
- pitch ( interaxis) : standard
- sieves frame : Yes

Terms needed to specify for ordering our perforated metal plate sieves:
- Quantity of requested sieves,
- their dimensions (standard shape or special order)
- metal material
- metal sheet thickness
- hole shape and dimension
- sieve edges
- pitch ( interaxis)
- aperture
- sieves frame.

Perforated Plate Test Sieve, Square‑Hole

200mm (Dia) x 50mm (H) Test Sieve - 9.5mm Perforation
Specification
Diameter: 200 mm
Height/ Depth of Frame: 50 mm
Aperture size (square hole): 9.5 mm
Frame: Mild steel
Screening material: Square hole perforated metal sheet

Uses:
Perforated plate sieves square hole is mainly used in screening coarse aggregates, gravel, crushed stone and large granules in construction-materials testing labs, preliminary size classification in mining, quarrying, sorting large industrial granules and on-site sample reduction for large particle materials.

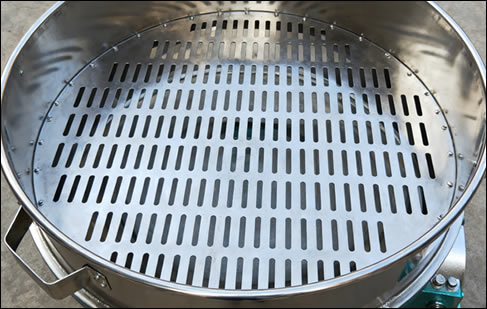

Rectangular Sieve - Perforated Plate Sieve( Slotted rectangular)

Perforated plate sieve for sift sorting- slotted hole
Diameter: 30cm
Mesh Size:
- 25mm
- 20mm
- 15mm
- 10mm
- 5mm
- 1.25mm
- 1.00mm
- 0.8mm
