Perforated Metal Ceiling Panels, Perforated Aluminum Ceiling Tiles, Perforated Metal Pan Ceiling

Perforated metal ceiling panels are widely used for ventilation, decorative and acoustic roofing system construction in commercial, public and industrial buildings. We supply aluminum perforated ceiling panels, galvanized steel perforated ceilings and stainless steel perforated ceiling tiles. Acoustic backing is at customers options and request.

Perforated metal panels with lightweight, good strength and decorative holes make ideal modern architectural designs. Porous perforated metal panels fitted with acoutic felt or acoustical pad can form efficient sound-absorbing ceiling system.

Decorative Perforated Ceiling Patterns:
We offer decorative perforated panels with square hole, round hole, slotted-rounded ends and hexagonal pattern with either a square, round or staggered pitch. These sheets are available in different hole shapes, pitch, materials, sizes and sheet thickness.

Materials and sizes
Stainless steel, mild steel, aluminum.
Mild steel 12 to 18 gauge
Aluminum .125"
Stainless steel 14 to 18 gauge

Common sizes:
Stainless SUS304 and Stainless SUS316 perforated mesh with round holes staggered arrangement. 0.20mm hole diameter × 0.3mm pitch × 0.1mm thick and 1.0mm hole diameter × 1.5mm pitch × 0.8mm thick.
Stainless steel 304 perforated plate 2000 × 1000 × 0.5mm × 0.5mm hole staggered at 90°.

Architectural Perforated Ceiling Panels manufactured from aluminum, galvanized steel and stainless steel with Custom Perforation, Sizes and Shapes

Perforated metal ceiling product is customizable in terms of perforation, sizes and shapes.

We supply both standard modular panels and customized ceiling tiles:

Perforated Metal Pan Ceilings
Metal ceiling tiles (pan type)

For lay-in, clip-in, clip-on, or hook-on ceiling systems
Modular, replaceable, Suspended Ceiling Panels
with Acoustic backer

Panel size: 4' X 4'
Panel size: 2' X 4'
Thickness: Not less than 0.57 inch
Edge Detail: Square
NRC: 0.95
Color: Anodized or White
Perforation: 0.098"
16% Open Area

Galvanized Steel Perforated Ceiling Panels
Ceiling panels min. 0.021 inch thick
Material: Galvanized perforated sheet steel
Standard: ASTM A 635, Grade 33 with G90 coating.

2x4 Metal Ceiling Panels Powder Coat White
Perforated Metal Ceiling for Railway Station
White perforated metal ceiling panels
Standard 2x4 ceiling grid
Supplied to USA

Perforated Linear Ceiling Tiles
For Roof system with lighting and ventilation
Type: Suspension Ceilings
Material: Aluminum Perforated Panels
Optional: Supplied with acoustic felt or pad.
900mm x 2000mm Linear Perforated Ceiling Panel (finished white)

Perforated stainless steel ceiling panels 20 gauge
Material: 304 SS
Panel holes about ¼”.

Perforated Steel Ceiling Panels 50 cent opening-Cells Ceiling
Galvanized Steel Perforated Sheets Cut for ceiling and cladding panels
Material: galvanized steel
Open: 50% open
Panel size 4 x 4
Size option: 11ft x 12ft.

Acoustic Ceiling Panels Snap-In Aluminum
Ceiling Type: Snap-in
Size: 600mm x 600 mm

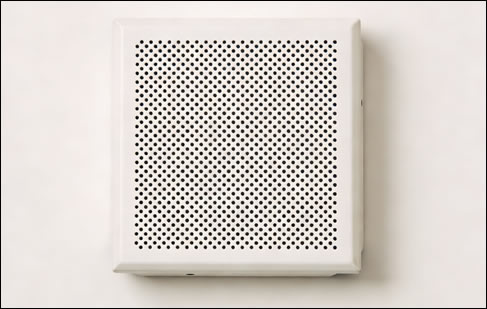

Perforated metal sheet aluminium ( round hols metal sheet, honeycomb type alum sheet )
Sizes options: 1200x2400 mm, 600x600mm or 600mm X 1200mm.

Perforated Steel Ceiling Panels 11 Gauge
11 gauge steel, 12 foot long x 48 inch wide.
Holes: 1/8” on staggered 3/16”.

Perforated metal plates with acoustic lining for ceiling
Stainless Steel Perforated Ceiling Panel
22 3/4x 22 3/4 stainless steel perforated panels

23 inch x 23 inch Ceiling Grill made from perforated stainless material
Hole pattern staggered . 5/16 inch hole.

Decorative Powdered Coated Perforated Ceiling Panels
· Minimum 70% open area
· Sheet Size: 47.25” X 23.75”
· Product can be expanded or perforated metal. Smooth edges. The panels can be replaced.
· Material: metal (stainless, galvanized or aluminium).
· Finish: metal color (stainless steel, paint or coated, mill finish, etc.)

Powder Coated Aluminium Perforated Strip Ceiling Tile
Width 150mm/200mm/300mm x length 3000mm
Backed with 50mm thick 40kg/m3 rockwool.

Custom Perforated Metal Ceiling Tiles
Perforated metal ceiling tiles 7" wide x 8'-0" long
Side: 4cm each side plain sheet
6mm/1/4" staggered holes
Spacing: 25mm/1"


We quote on basis per square meter or linear meter.

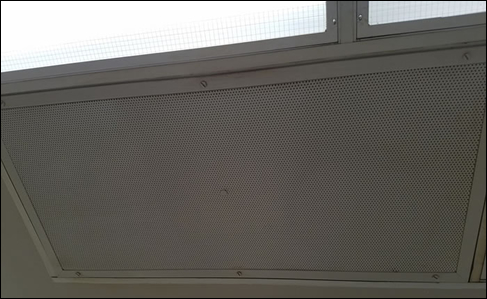

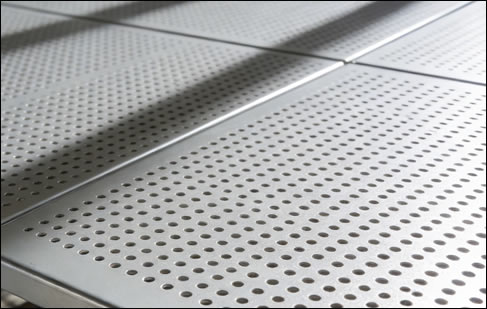

1/8" Perforated Anodized Aluminum Ceiling PanelsCeiling Air Diffuser Screens, 1/8” Perforated Anodized Aluminum Ceiling Panels, Size 22-3/4” Wide x 47” Long complete with ¾” edged perimeter border frame, with 6 each –¼” predrilled holes (3 on each side) .

70% Perforated Ceiling Tiles:Painted white perforated metal panels for ceiling cladding

Aluminum perforated sheets for vent ceiling tiles:Sheet width 64 cm
Perforation: 56 cm of the sheet width perforated, with 4cm from each side left plain sheet
· Aluminum sheet thickness: 1mm
· Finish Options: White painted ( the right one in above photo) or anodized aluminum ( the left one)
Panel size: 600 x 1200mm

Applications:

According to major functions, perforated ceiling panels we supply can be classified into three types as below.

Ventilation Perforated Ceilings
Steel perforated sheet: used to allow air circulation, heat release, and smoke exhaust.
Supplied without acoustic backing.
Used in parking garages, transport stations, industrial areas

Decorative Perforated Ceiling Panels
Decorative hole patterns
Used in shopping malls, lobbies, offices and public interiors.

Acoustic Perforated Ceilings
Perforated metal panels combined with acoustic fleece or insulation materials
Used in offices, schools, hospitals, stadium, airports, stations.

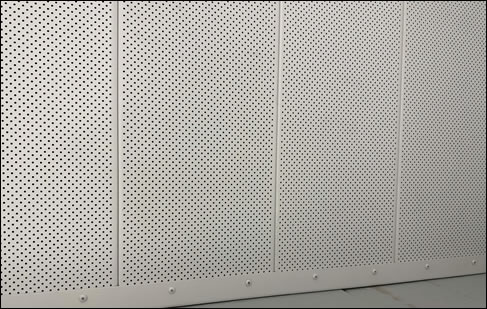

Acoustic Perforated Ceiling Panels -610 x 610 mm MS

Size: 610 x 610 mm with 50-60% perforation
Material:Mild steel
Thickness: 12 Gauge
Off white or cream colour Powder coated
Backed with acoustic fleece

Ventilated Metal Ceiling, Square SheetMetal Perforated Composite Ceiling Panels of Stainless Steel, Round Hole Perforation
Can be supplied with acoustic fabric on back surface for sound control
Thickness:0.45 mm
Size:600mmx 600mm
Hole:2.3mm

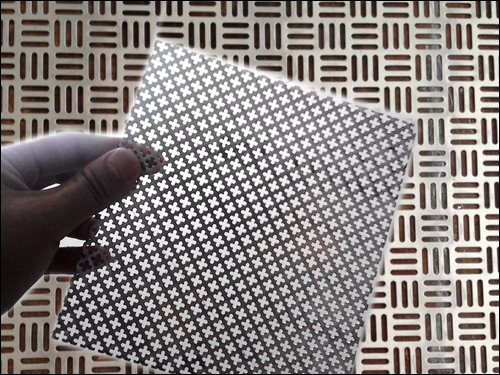

Decorative Perforated Metal Panels for Ceilings

Mesh sheet perforated or etched for Roof and Light Pool Decoration

Perforated Ceiling System Projects
We can help design, fabrication and installation of the metal perforated ceiling system
A few listed for references.

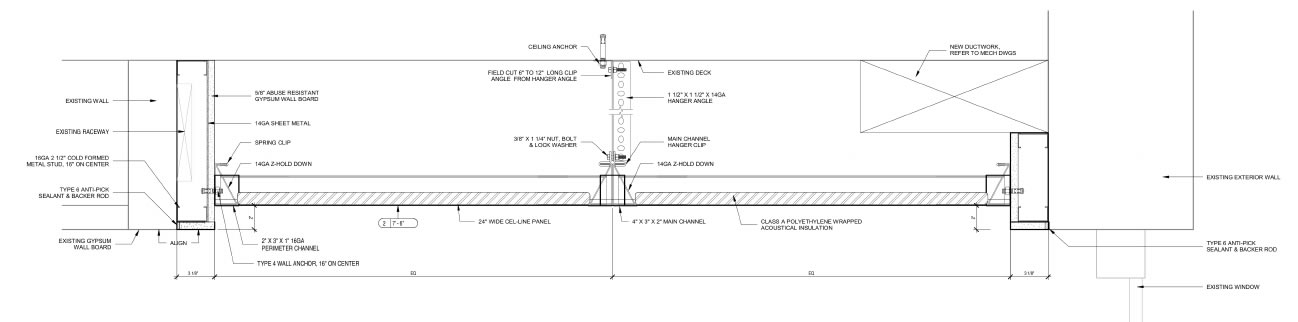

Perforated Metal Panels Security Ceiling System - Acoutic Perforated Steel Ceiling Panels Hot Dipped Galvanized
Designed as a security metal panel ceiling system
Acoustical Perforated Metal Ceiling Panels of 16 Gauge Perforated Steel Sheet
Hot Dipped Galvanized

SYSTEM DESCRIPTION:
Acoustical perforated metal ceiling with acoustic insulation, perimeter channel, main channel, and hanger system
The system consists of modular tamper-resistant perforated long span steel ceiling panels and heavy duty support system with removable panels and access panels.
Designed system to resist minimum upward and downward live loads of 100 psf.

Products including:
Ceiling System Panels.
Acoustic Fill.
Suspension System Components.

Samples:
1. Ceiling Support System: 12 inches long, full sections, each component.
2. Panels: 12 inches square showing end and edge construction, with acoustical fill and front and back panels in place.
3. Color Samples: Manufacturer's standard colors for finish specified.
4. Fasteners and Anchors: 5 each type and size.

Quality Control:
Test Reports: Acoustic laboratory test reports for sound absorption (NRC) and sound transmission (STC).

MATERIALS

Steel Sheet: ASTM A 526, before fabrication steel sheet
ASTM A653 G 60 hot dip zinc coating and vinyl clad surfacing laminated to exposed surfaces.
Steel Shapes, Plates, and Bars: ASTM A 36, galvanized.
Acoustic Fill: FS HH-I-521, Type 1;
Mineral fiber blankets without membrane covering sealed in minimum 6 mil polyethylene bags.
Fasteners: for secure installation of ceiling system. Galvanize fasteners.
Standard Bolts and Nuts: ASTM A 307, Grade A, regular hexagon head.


FABRICATION

Ceiling panels from 16 gauge perforated steel sheet
Other area: 16 gauge unperforated steel sheet
Fabricate panels with vertically sloped structural and acoustic ribs
Panel Width: 18 inches.
Panel Length: Full length wall to wall, without joints.

Perforated panels have round and diagonally centered perforations
Maximum diameter of 3/32 inch on 3/16 inch staggered centers with
Minimum open area of 23 percent.

Form ceiling support system from steel shapes, plates, and bars
Galvanize ceiling support system after fabrication.
Fabricate ceiling system to achieve an STC rating of 33 and an NRC rating of 0.95.

Fabricate ceiling panels for predetermined openings
Reinforce and close panel edges to maintain panel strength, alignment, profile, and security.
Reseal polyethylene covers of acoustic fill.
Fabricate access panels and removable panels where indicated and required.

GALVANIZING

A. Materials to be galvanized with a zinc coating by the hot dip process, after fabrication,
complying with the following:
1. ASTM A 123 for plain and fabricated material, and assembled products.
2. ASTM A 153 for iron and steel hardware.

FINISHING
After fabrication, give steel shapes, plates, and bars that will be exposed in the
finish system a minimum 2 mil thick coat of polyester coating.

Tolerances:
1. Maximum Deflection of Suspension System with Full Dead Load: L/240 of span.
2. Finish Ceiling Surface: True within 1/8 inch per ten feet.

Suspended Ceiling System (Aluminum Perforated Acoustic Panels) - BS EN 13964
Custom-made, hook-on suspended ceiling system perforated aluminium acoustic panels with 50 mm mineral acoustic inlay, providing αw ≥ 0.7 sound absorption, Class 1 fire performance, airflow through the ceiling, BS EN 13964 compliance with a 10-year warranty.

Suspended Ceiling System (Perforated Acoustic Panel)
System type: Hook-on metal ceiling panels with concealed suspension system
Standard: BS EN 13964 – Suspended ceilings: Requirements and test methods

System Description
Custom-made ceiling system comprising perforated aluminium acoustic panels and associated suspension components
The system is designed to meet specified requirements for acoustic performance, fire performance, structural performance, durability, and integration with building services

Supply Scope
The complete ceiling system, including metal ceiling panels and suspension

Perforated Acoustic Panel – Technical Specification
Panel type: Trapezoidal perforated acoustic metal radial ceiling panel
Material: Aluminium
Thickness: 3.0 mm
Surface pattern: Perforated

Acoustic Performance
Minimum weighted sound absorption: αw ≥ 0.7
Acoustic lining:
50 mm thick acoustic inlay
Wrapped with non-woven mineral black tissue

Acoustic performance testing:
BS EN ISO 354 – Measurement of sound absorption
BS EN ISO 11654 – Rating of sound absorption

Fire Performance
The perforated acoustic panel system shall comply with:
BS 476-4 – Non-combustibility
BS 476-6 – Fire propagation
BS 476-7 – Surface spread of flame
Ceiling soffit and void surfaces: Class 1 spread of flame

Surface Finish
Finish type: powder coating
Standard: BS EN 12206-1
Minimum coating thickness: 70 μm
Finish appearance: Matte
Colour: Dark grey (RAL 7022)

Ceiling System
System form: Hook-on metal panels
Suspension: Concealed suspension system
Access: Panels shall be individually demountable using tools
Airflow: Panels shall allow air flow to both sides of the suspended ceiling

Structural Performance
Designed to resist static and dynamic loads
Capable of accommodating building movement without visible distortion
Ceiling system shall withstand vibration with no audible drumming noise
Pipework and ductwork shall not be supported by the ceiling system
Internal wind load resistance: 0.25 kPa
Maximum Deflection Limits
Span < 1200 mm: Span / 400
Span 1200–1800 mm: Span / 400
Span > 1800 mm: Span / 600

Durability & Warranty
Exposure classification: Class A (BS EN 13964)
Durability: System shall not deteriorate under normal usage with regular maintenance
Warranty period: 10 years
Warranty coverage: Free from visible sagging or warping due to defects in material or factory workmanship

Health, Hygiene & Environment
Standard: BS EN 13964
Risk of contamination: Level A – Not susceptible

Samples & Submittals
Manufacturers shall provide:
600 mm length panel samples
Suspension system components
Fixings and fasteners
Paint colour and coating samples
Technical literature, test reports, and certification
All samples shall represent the final finished condition and be submitted prior to ordering

Compliance & Testing
Full system testing required for:
Structural performance
Fire performance
Acoustic performance

Perforated Acoustic Panel system metal ceiling solution
Custom fabrication, certified acoustic and fire performance, coordinated suspension design
Fully compliant with BS EN 13964 and associated British and international standards.
