Checker Plates in Aluminum, Steel, Stainless for Anti Skid Tread and Industrial Flooring

Chequer plate as one special perforated metal makes ideal anti skip / slippery material for the industrial floors and treads. Also known as Checkered Plate. We supply checkered plate in one bar, two bar, three bar, five bar, six bar diamond pattens, also dimple round bump checkered and embossed checkered.

Features: Chequer plate or checker plate is both slip-resistant and decorative.

Standard Sizes: We supply chequer plate (checker plate) in sheet thickness from 2mm to 6mm.

Main types of materials:
· Stainless steel checkered plate
· Aluminum Diamond plate
· Checkered steel plate perforated metal.

Main market:
Building & construction material importers and wholesalers in USA, Australia, Europe, Asia and Other Countries.

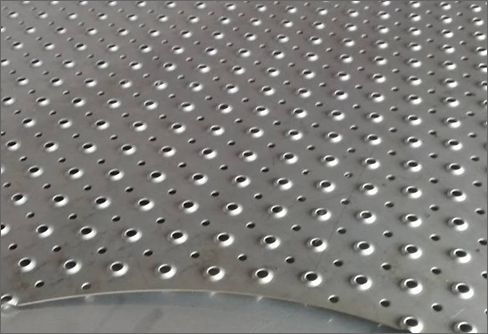

4mm thickness Alum Perforated Checkered Sheet

4mm thickness Aluminum Perforated Checkered Sheet in Mill Finish
Grade: AA3003-H14.
Perforated plate for architectural application

Steel Chequered Plate

Non-skid steel plate, for platform truck flooring
Material:BS EN 10025 OF 2004 GRADE:S 275 JR

Anti-skidding plate, of hot rolled chequered steel, panel size 6x 1250 x 2500mm, thickness:6mm

Checkered Floor Plates

配图，类似上图：checkered-floor-plate.jpg alt: Diamond checkered floor plate 28x8mm

Pattern: Diamond Checkered, Tear Drop, or Almond Plates
Size: 28mm length (diamond) x 8mm width (diamond)
Thickness: (12 + 2) mm ((12mm plate thickness & 2mm pattern thickness)
EN Standard: EN 10025-2 / 19-S355 J0+N

Galvanized Diamond Chequer Floor Plate

Checkered Steel Sheet - Floor Steel Plate
Size: 3/16” x 4’ x 8’
Material: Galvanized steel
Pattern: Diamond / chequered floor plate
Thickness of base plate:6.0mm
Material: Stainless steel marine grade optional

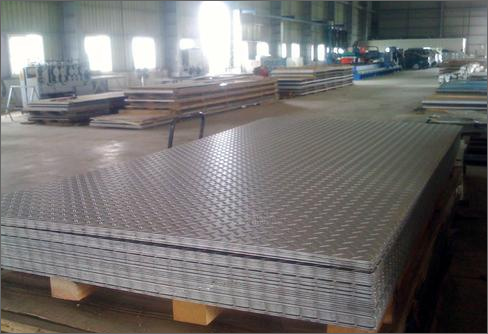

Checkered Plate Perforated Metal

Perforated steel flooring for shipping container rooftop decks/walkways

Perforated metal sheet flooring: 2.4m x 3m decks, of mild steel galvanized post-fabrication, for slip resistance

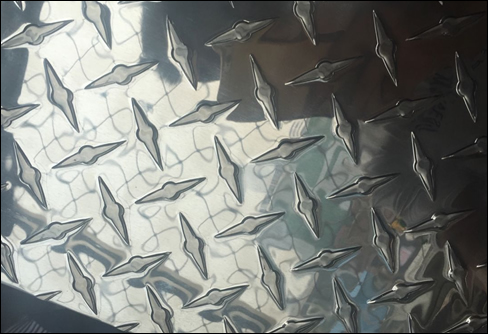

AL-2024 T4 Diamond Pattern Checker Plate

Material: 2024 aluminium
Diamond Plate Resist Skid Checker Plate: diamond pattern, one bar, for walkway project

1220MM X 2440MM X 1.2MM AL-2024 T4 Diamond pattern checker plate
460MM X 2440MM X 1.2MM AL-2024 T4 Diamond pattern checker plate

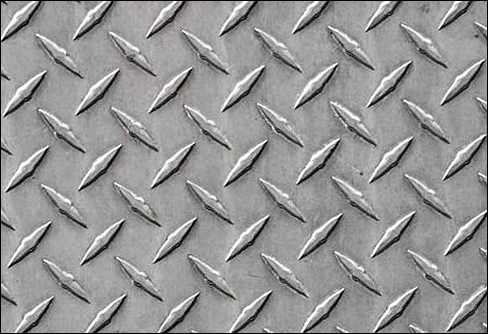

Stainless Steel Diamond Plate

Stainless steel diamond (or checker) plate

4' X 8' X 1.2 MM Thick Diamond Plate Resist Skid Checker Plate

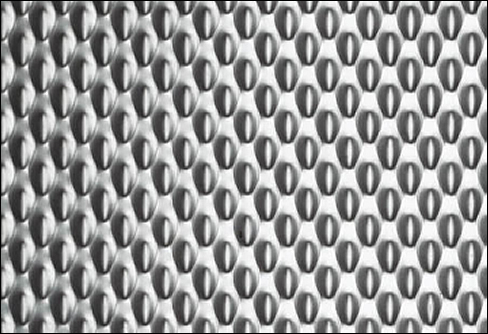

Stainless steel checkered plate in diamond pattern, 4' X 8' X 4 mm thick, material: SS304, for Russia market

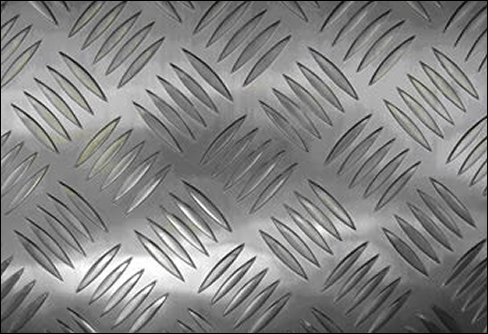

(A3105) Aluminum Checker Plate, 2mm thick, five bar pattern

Five bar checkered plate, 1.22mx2.44mx2mm thick
Full specifications per attached file.

One Bar Stainless Steel Checkerplate, Grade 304/304L

304/304L stainless steel Hot Rolled checker plate
Material: SS304, 304L

Sheet size:
3.5mm 304/304L Hot Rolled 1220 x 2440 (1 bar)
4.5mm 304/304L Hot Rolled 1220 x 2440 (1 bar)
6.0mm 304/304L Hot Rolled 1220 x 2440 (1 bar)

Aluminum Skid Plate and Aluminium Coil

Skid Checker Plate
Material: A1050
Plate size: 3 x 1200x 2400mm

Aluminium checkered plate AA3105
Patterns: Five bar
2.5mm x 4'
3.0mm x 4'
4.0mm x 4'
4.5mm x 4'

Aluminium Coil AA1100 -H14
0.3mm x 4'
0.4mm x 4'
0.7mm x 4'
0.8mm x 4'
1.0mm x 4'
1.2mm x 4'
1.5mm x 4'
2.0mm x 4'
2.5mm x 4'
3.0mm x 4'
4.5mm x 4'

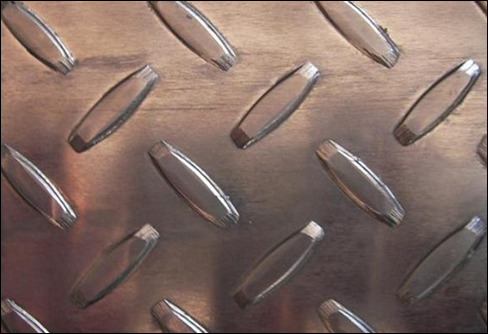

Hot Dip Galvanized Steel Checker Plate

Chequered Sheet size 3/8” thick x 16” x 24”
1/4” thick x 8” x 16”
1/4” thick x 16” x 24”

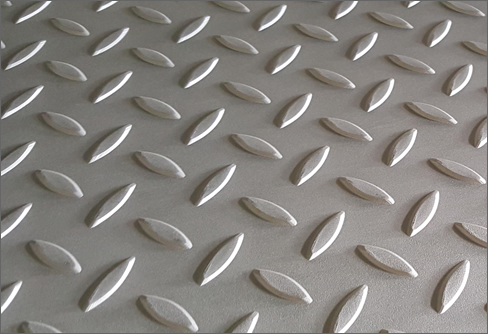

Carbon Steel Chequered Plate

Chequered plate size 10mmx1500x6000mm, material:Carbon steel
Chequered plate raised pattern.
Chequered pattern according to attached file.

Chequered Plates - 316L

Chequered stainless steel plates :
Dimensions: 2438x1219mm
GRADE : 316 L
Sheet thickness 3.5mm, thickness of raising 1.5mm, total thickness of the plate: 5mm
Drawing references in attached file.

Stainless Steel Chequered Sheets-Finish 2B, BA

3.00 mm 2 x 1 Finish 2B
3.00 mm 4’ x 8’ Finish 2B
3.0 mm 4’ x 8’ BA (bright annealed)
2.0 mm 2 x 1 BA
2.0 mm 2 x 1 2B

Checkered Metal  Grip Flooring
Pattern: Checkered round bump
Material: SS
Used for the refrigerated/freezer area floor
