Home » Products » Perforated Metal Styles » Diamond Hole Perforated Metal Panels

Diamond Hole Perforated Metal Panels

Diamond hole is a popular pattern for perforated metal sheets or panels used for industrial fabrication and decoration. Diamond hole perforated panels are available in galvanised steel plates, hot dipped carbon steel panels, stainless steel or aluminium. Made by precison punching of metal panels, diamond hole perforated sheets are durable and decorative, suitable for a wide application range.

Diamond perforated metal sheets materials:
Carbon steel sheets, aluminum sheets, stainless steel sheets, copper sheets, other alloy metals materials you need.

Hole shape:
Diamond;
Diamond oval.
Other hole patterns also available: square, circle, triangle, etc.

Panel size:
Coiled sheet: 1×20m
Flat sheet: 1.5×2.5m
Panel thickness: 0.2-15mm. Custom sizes available.

Processing: Numerical control punching

Applications
Noise insulation barriers, indoor sound insulation, acoustic panels, architectural decorative mesh, machinery guarding covers, storage shelf and more.

Perforated metal sheets production process:
 Die--perforating--slitting--shearing--roller--leveling--clean--packing.

Diamond perforated metal sheets specifications:

Plate
Material		 Thickness of
Metal (mm)		 Hole
Dia. (mm)		 Pitch
(mm)		 Sheet
Width (m)		 Sheet
Length (m)		 Porosity
(%)		 Weight
(kg/m2)
Rolling
plate		 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
Flat plate 0.5 1 1 1 2 19.6 3.14
0.55 1.1 2.2 1 2 22.67 3.411
0.55 1.5 2.8 1 2 26.03 3.268
0.8 1.5 1.5 1 2 19.6 5
0.8 2.0 3.4 1 2 30.78 4.465
1.5 2 2 1 2 19.6 9.4
1.5 5.0 8.0 1 2 35.39 7.843
3 5 16 1 2 19.6 18.8
Stainless
steel plate		 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum
plate		 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6 4.23

Diamond Hole Aluminum Perforated Sheet
Aluminum perforated sheets with Diamond Holes
Sheet size: 4’ x 8’
Thickness: 20Ga aluminum
Hole shape: diamond holes 3/32 diamater on 5/32 staggered

Diamond Perforated Panel
Material: Stainless steel
Hole size: 3mm

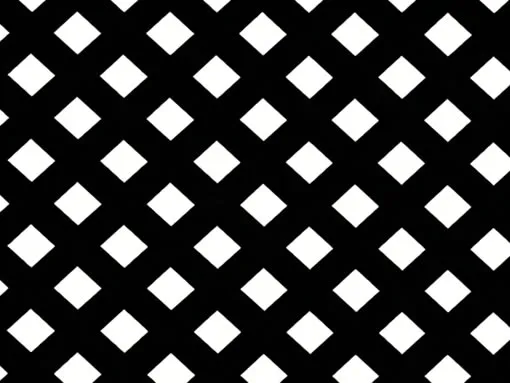

Diamond Mesh Perforated Sheets 2mmx2mx1m
2mm diamond mesh perforated metal sheets
Sheet size: 2m x1m
Sheet thickness: 2mm

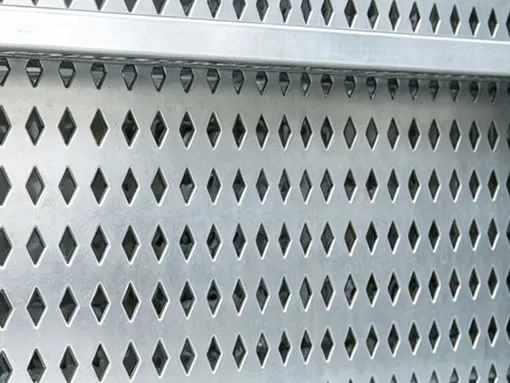

Diamond Hole Perforated Metal Panels
Diamond perforated metal panels for shelving uses
Specification:
Diamond Hole Perforated Metal Panels Thickness: 0.8 mm
Sheet size: 600 mm width x 2112mm
Custom cut panel sizes available
Hole: Diamond perforated

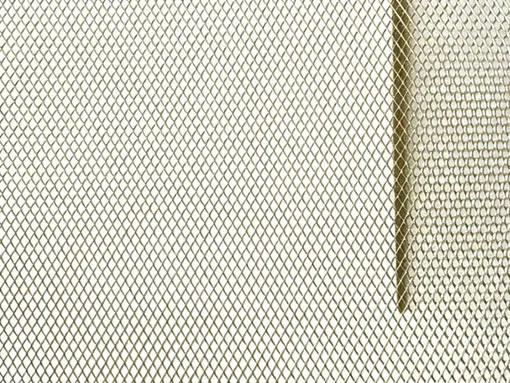

Brass Perforated Mesh with Diamond Shaped Opening
5mm brass perforated screen panels
Brass - perforated screen
Thickness: 5mm

Brass Perforated Panels for Grid
3mm thick brass grid of perforated diamond hole panels

Stainless Steel Perforated Metal Panels for Architectural Decoration
Stainless Steel Perforated Metal Panels for Architectural Decoration

Decorative Perforated Wire Mesh Grilles in Aluminum
Decorative Perforated Wire Mesh Grilles in Aluminum

Perforated Architectural Wire Mesh Used as Stair Fencing
Perforated Architectural Wire Mesh Used as Stair Fencing
