Anti-Slip Dimple Perforated Plank Type Safety Grating for Platforms Flooring and Stair Treads

Dimple Perforated Grating is a one-piece metal plank punched with uniform anti-slippery raised dimples. The anti-slip perforated sheet metal plank is designed as open grid grating floor for industrial platforms and walkways.

Plank Form:
Dimple perforated sheets are pressed into a plank /channel form, adding stiffness and easy for installation.

Common plank widths: 200–500 mm; length up to 3000 mm.

Size Range
Thickness: 1.0 mm – 5.0 mm
Standard Sizes: 1000 × 2000 mm, 1220 × 2440 mm, customizable dimensions available
Surface Patterns: Round Dimple, Diamond Dimple, Oval Dimple, Embossed Checker

Compared with traditional steel bar grating, perforated steel plank grating offer 5 major advantages:
One-piece metal plank with dimples for anti slip safety surface;
Lighter weight;
Better drainage;
Cost-effective, durable;
Easy to clean and easy to install compared with steel bar grating.

Materials: Galvanized steel. Stainless steel and aluminum optional at request.

Uses
Dimple perforated plate channels are used in factories, power plants, construction sites and ship decks.
Main used as:
Industrial floors, platforms and catwalks
Stair treads and access flooring
Bridge, ship and offshore platform flooring

Galvanized Steel Dimpled Sheet Plank Grating for Platform Flooring

Galvanized steel dimple perforated grating has excellent traction, easy fabrication, low cost and low maintenance for platforms, ramps and stair treads.

Perforated Dimple Stainless Steel Channel Grating

Stainless steel 304 perforated dimple sheet plank for ship decks and flooring

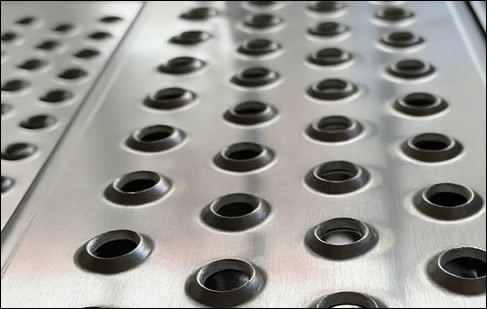

Perforated Dimpled Plank Grating for Safety Tread Floor

4 ½” inch width x 96” inch length x 1/8” inch thickness - 11 gauge
For Manufacturing Gantry Steps and Warehouse Platform Steps
Antiskidding Style: Dimpled
Size Options: 4 1/2" width x 96" length x 1/8" thickness
Material: Aluminum (5052-H32 or 6061-T6)
Thickness: 0.125"
Width × Length: 4.5" × 96"
Surface: raised dimple anti-slip
Form: flat plank/strip
Edges: deburred

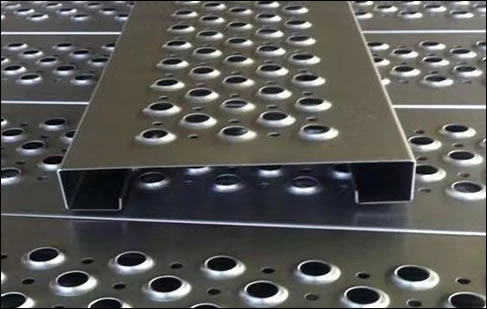

Anti-slip Embossed Traction Grip Safety Grating

Thickness: 3mm
Pattern: Anti-slip raised round dimple embossed
Safety grating with 60x5t FB frame
Mill & HDG finish available
Sheet size: 350mm W x 12.1m; 250mm Wx 21.11m
Hot Dip Galvanizing: HDG Standard EN ISO 1461:2009

Dimple Perforated Sheets Channel Form
Size: 575x550mm
For safety walkway
Material: Galvanized Steel

Varieties:
Stainless Steel perforated dimpled plank
Aluminum sheet plank with small dimple embossing patterns;
Hot dipped galvanized mild steel dimple perforated plank panels.

Galvanized perforated dimple sheet is most popular for industrial floors.
