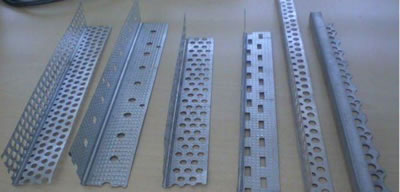

Perforated Metal Steel Angle Bead, Aluminum Corner Guards and Stainless Steel

Angle bead, also known as Corner Bead, Corner Guard, is a specialized perforated metal mesh products formed in certain angle, processed from stainless steel, galvanized steel or aluminum perforated plates.

Hengda perforated metal plaster beads are designed to form strong and accurate building corners that are resistant to chipping and cracking. Our perforated metal beads are mostly for the second and third time wall coating uses featuring good shaping, clear corners and excellent structural stability.

Perforated metal beads have commonly round punched holes or triangular holes and increased diamond wings for wall plaster. Our angel bead is used over irregular wall surfaces to ensure straight corner lines in drywall construction. It has easy installation with wave margin and nail holes. The fiberglass mesh wings along the length of the flange act as a keyway for holding the drywall mud to the drywall and the corner. This mesh insures a perfect bond and provides effective reinforcement where most needed. Straight edge nose is easy to install and permits plumb straight outside corners. The angle bead plate thickness generally ranges from 0.4mm to 0.5mm.

Technical Information of Corner Bead / Angle Bead made of Perforated Aluminum Strips or Steel Strips:

Common metal bead sizes:
1. Hole size: 15mm, 10mm, 20mm, 30mm
2. Bead Edge:30mm, 40mm, 50mm, 60mm
3. Metal Bead Plate Length: 2.4m-3.0m

Hole Shapes:
Commonly round, also triangle and other patterns.

Popular Materials:
Galvanized steel angle bead;
Aluminum angle bead ( enjoying light weight);
Stainless steel angel bead (for external uses and areas with high condensation and high moisture content).

Comparison of Perforated Metal Corner Beads and Expanded Angle Beads:

Corner beads are either made of perforated metal or expanded metal. While both are widely used, perforated metal beads offer stronger trimming compared with expanded metal beads. Perforated angle beads have more uniform plate thickness, hole sizes and easy to keep its original shaping.

Corner beads of round hole perforated galvanized sheet:

Perforated Galvanized Steel Corner Beads with Round Holes

Galvanized steel perforated corner / angle beads render a clean,straight corner in wall and roof, suitable for vertical,horizontal and curved applications, for plastering around ceiling perimeters, doors,windows.

Material: Galvanized mild steel sheet perf
Surface Treatment: Hot dip galvanized steel with zinc coating

Angle Beas of diamond expanded steel sheet:

Expanded Steel Angle Bead with Diamond Opening

Plaster beads in various holes styles:Steel Corner Bead for Wall Plastering
