Serrated Diamond Perforated Grip Grating for Industrial Walkways and Platforms

Diamond Perforated Grip Grating is made of one-piece diamond perforated metal flooring designed for maximum slip resistance and drainage in wet, oily, or icy conditions. The diamond-shaped teech-like perforations with serrated raised edges create a multi-directional grip surface. The diamond perforation allows dirt, debris and liquids to pass through easily, keeping the surface clean and safe. Compared with traditional dimple perforated grating or bar grating floors, Diamond Perforated Grip Grating offers lighter weight, higher traction and reduced maintenance.

Process:
This grip safety grating is produced by cold-forming and punching, not by traditional perforating. The process uses a press die to shear and raise the metal into diamond-shaped teeth in one operation, creating a self-cleaning and slip-resistant surface.

We supply diamond opening perforated grating made from galvanized steel, stainless steel or aluminum. Finishes can be mill finish, hot-dip galvanized or anodized steel.

Materials
Mild steel (hot-dip galvanized or painted)
Aluminum alloy (5052, 6061)
Stainless steel (304 / 316)

Forms of Supply
Planks;
Sheets.

Common Sizes
Sheet width: 12"– 48"
Length: up to 3000 mm (10 ft)
Thickness: 14–11 gauge
Opening size: 20 × 60 mm diamond perforations with serrated edges

Applications
Diamond Perforated Grip Grating is widely used for industrial walkways, maintenance platforms, mezzanines, oil rigs, power stations and tank access systems.

Key Features
High Slip Resistance;
Efficient Drainage;
Lightweight Strength;
Modular planks or sheets for easy installation.

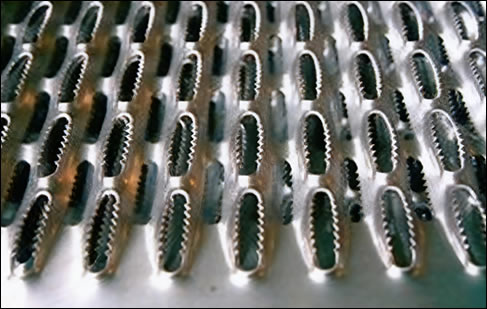

Anti-Slip Stainless Steel Diamond Perforated Flooring

Sheets of stainless perforated flooring raised one diamond serrated type
Specification:.

SS 304 Safety Flooring Sheet - 1820x1165x3mm
Thickness: 16 Gauge
Treads: 900x365x3

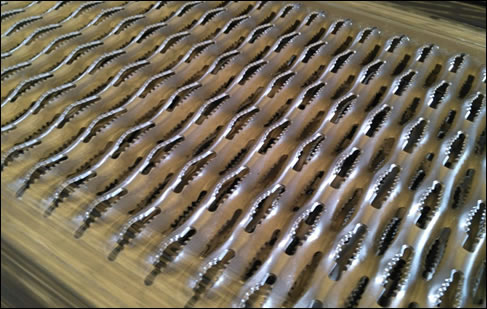

Diamond Teeth Raised Edge Perforated Plate

Raised Edge Diamond Perforated Plate used as channel flooring, decking construction. Excellent safety grating treads.
Material: Hot dipped galvanized steel
Sheet thickness: 1/8"
Diamond hole size: 1" wide x 1/2" high x 3" spacing
