Ni-Hard Perforated Floor Plate-Wear Resistant Cast Iron Platform Deck Panels and Walkways

Ni-Hard Floor Plate, also known as White Cast Iron Honeycomb Panel, Ni-Hard Perforated Deck Plate, is a heavy-duty abrasion-resistant perforated floor plate. The typical honeycomb or hexagonal perforation ensures efficient drainage, grip and reduced surface weight. Manufactured from nickel-chromium white cast iron, this floor plate is suitable for high-impact and high-wear industrial flooring. Ni-Hard offers much higher abrasion resistance over common steel plate.

Material
Ni-Hard Cast Iron (Nickel-Chromium White Iron)
Ni-Hard cast iron is a nickel-chromium alloy with high hardness and excellent resistance to abrasion, heat, and impact.

Ni Hard Honeycomb Floor Plates Perforated Type

Ni-Hard Cast Iron Perforated Floor Plate 1800 × 965 × 14 mm
Material: Ni-Hard Cast Iron /Nickel-Chromium White Cast Iron
Standard: ASTM A532 Class I Type A/B
Dimensions (L × W × T): 1800 mm × 965 mm × 14 mm
Pattern Type: Honeycomb / hexagonal perforated
Open Area Ratio: 35–40%
Hardness: 500–600 HB
Tensile Strength: 400–500 MPa
Compressive Strength: ≥600 MPa
Wear Resistance: 5–10 times higher than mild steel under abrasive service
Service Temperature: Up to 400 °C in dry environments
Color: Natural dark gray cast iron

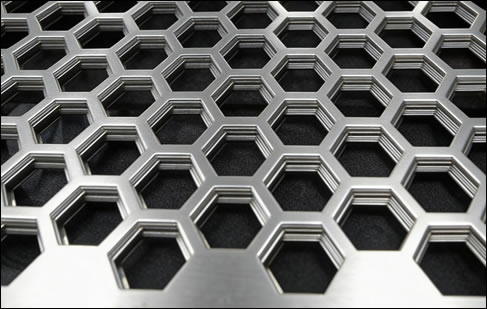

Ni-Hard Cast Iron Perforated Floor Plate 1800 × 1250 × 14 mm

Material: Ni-Hard Cast Iron / Nickel-Chromium White Cast Iron
Standard: ASTM A532 Class I Type B
Dimensions (L × W × T): 1800 mm × 1250 mm × 14 mm
Pattern Type: Perforated honeycomb / hex
Open Area: 25 – 35 %
Edge Margin: 25 mm solid border
Hardness: 500–600 HB
Tensile Strength: 400–500 MPa
Compressive Strength: ≥600 MPa
Wear Resistance: 5–10 times higher than mild steel under abrasive service
Service Temperature: Up to 400 °C in dry environments
Color: Natural dark gray cast iron
Installation Method: Bolted or seated on support frames, removable modular design

Ni Hard Cast Iron Floor Plate has following Features:
500–600 HB for superior abrasion resistance to sand, ore, etc.;
Extreme wear durability under heavy load;
Honeycomb / hexagon perforated for drainage and anti-slip safety;
Works in temperature up to 400 °C.

Uses
Cast Iron Honeycomb Floor Plate is widely used as wear-resistant floor solution:
In Mining and Quarrying as floor decking and liner plates;
In Cement and Aggregate industries as platform walkway grating and drainage panels;
In Steel and Foundry industries as heavy-load walkways and furnace pit covers;
In Power and Biomass industries as ash-resistant grates and flooring;
In Chemical and Fertilizer industries as floors in corrosive environments.
